AS_832C LED Controller

AS-832C Offline DMX512 LED Controller Overview

The AS-832C is a powerful and user-friendly offline DMX512 LED controller, designed for a wide range of LED applications such as stage performances, architectural lighting, and art installations. It supports standalone operation and flexible scalability, making it ideal for professional lighting projects.

Key Features

• Offline Operation
  Operates independently without the need for a continuous connection to a computer or lighting console, offering more freedom and flexibility.

• Built-in SD Card Slot
  Equipped with an SD card slot to store pre-programmed lighting effects for easy access and management.

• DMX Control Compatibility
  Supports standard DMX512 protocol, allowing recorded lighting effects to be triggered and controlled via mainstream DMX consoles (e.g., MA Lighting, Avolites).

• Cascade Support
  Multiple units can be linked together in a master-slave configuration to achieve synchronized control across large-scale setups.

• Support for Various Lighting Effects
  Capable of recording and playing back:

  • 2D lighting effects such as animated patterns and color flows

  • 3D XYZ lighting effects for volumetric light sources or spatial layouts

Highlights

• Up to 64 Programs Storage
  Stores up to 64 lighting programs, allowing for fast switching and flexible playback.

• External DMX Signal Control
  Lighting effects can be controlled via external DMX signals for switching, playback, pause, and more.

• Broad Fixture Compatibility
  Supports both SPI digital strips and DMX512 fixtures, and is compatible with multiple channel configurations including RGB, RGBW, and RGBWA.

• High System Integration
  Fully compatible with various lighting control systems, making it an ideal choice for large-scale performances, exhibitions, and cultural tourism projects.

Specifications

Product Type:
AS_832C LED Controller

Supported Software (developed by Aoshowled):

• LEDShow

• VideoLEDShow

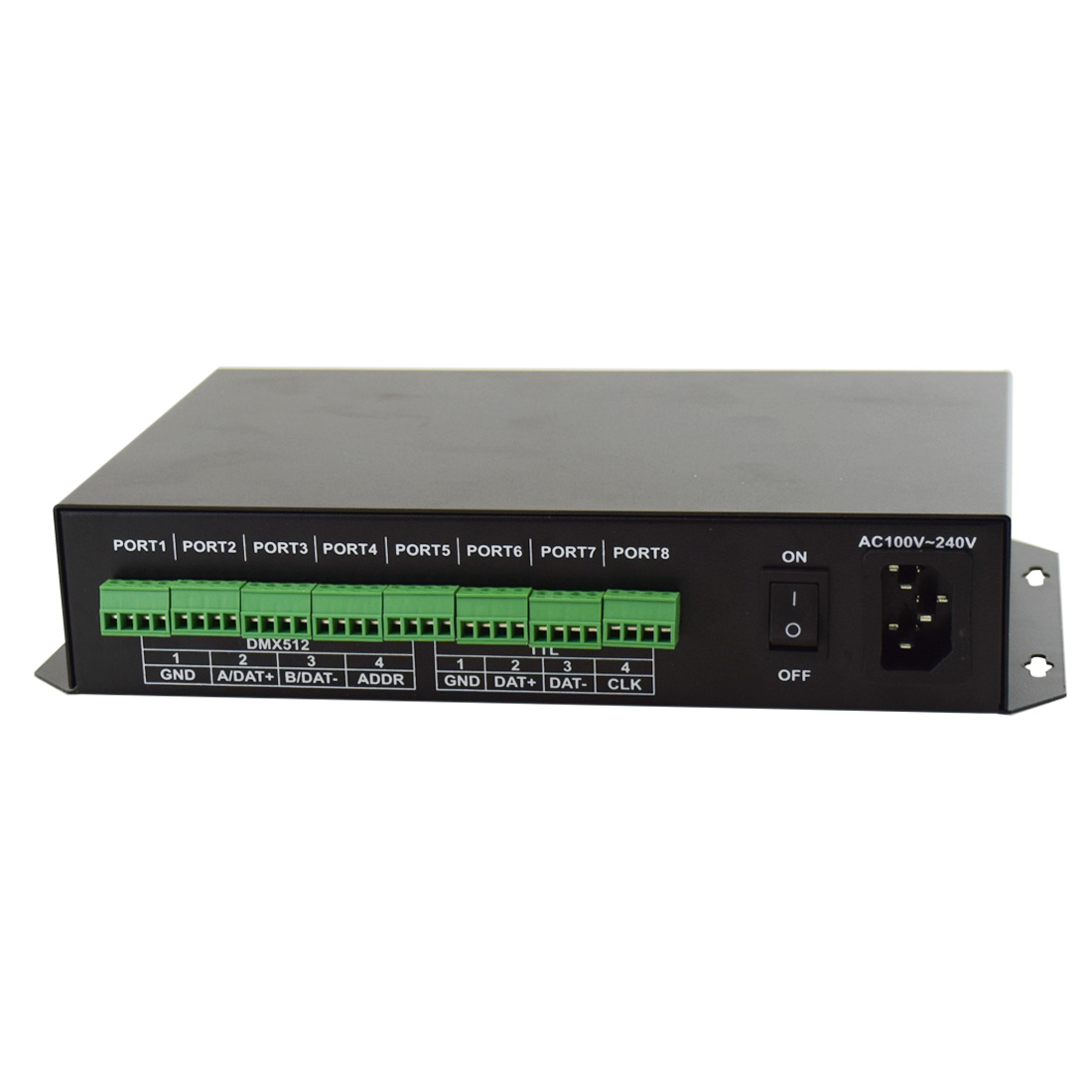

• Output Ports:

• Total: 8 Ports

Control Capabilities:

SPI Control:

• RGB (3 Channels): 8 ports × 1024 pixels/port = 8192 Pixels

• RGBW (4 Channels): 8 ports × 768 pixels/port = 6144 Pixels

• RGBWA (5 Channels): 8 ports × 614 pixels/port = 4912 Pixels

DMX Control:

• RGB (3 Channels): 8 ports × 170 pixels/port = 1360 Pixels

• RGBW (4 Channels): 8 ports × 128 pixels/port = 1024 Pixels

DMX Console Compatibility:

Fully compatible with major DMX lighting consoles:

• MA Lighting

• Avolites

• Onyx

• MagicQ

• Standard DMX systems

Hardware Specifications:

• Control Buttons: 5-Key interface

• Material: Plastic + Aluminum Alloy

• Power Input: AC 100~240V (Wide Voltage)

• Protection Level: IP20

• Lifetime: Over 50,000 hours

• CE RoSH
